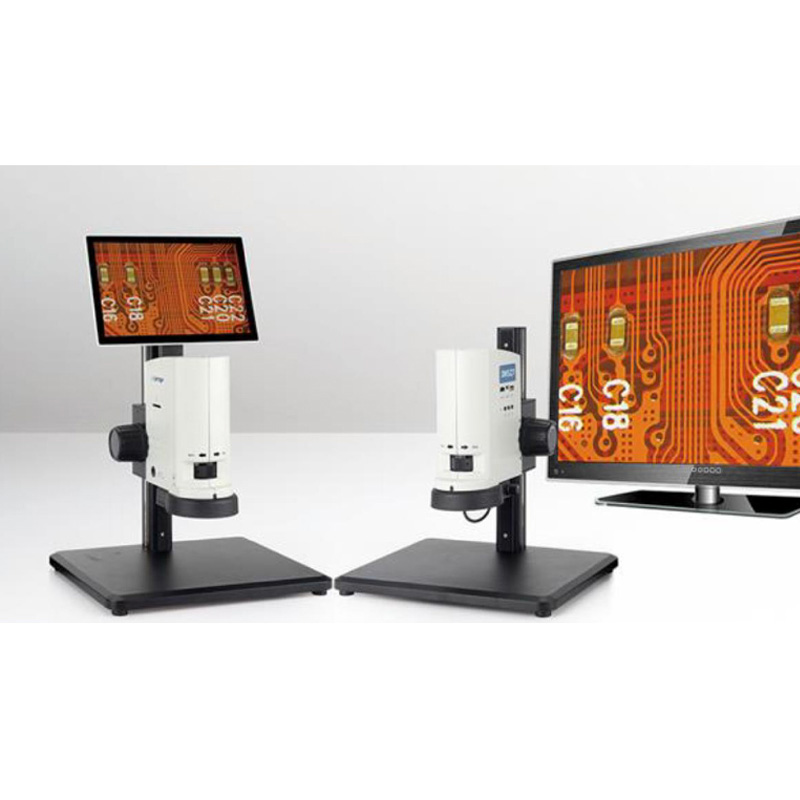

Video Zoom Stereo Microscope

Video Microscope or also known as PCB Microscopes are essential tool in electronic manufacturing, repair and debugging process engaged in difficult tasks such as circuit board inspection and soldering. It provides magnification and illumination to help users inspect and work on small components and solder joints on PCB with accuracy and with higher illumination options they facilitate a well-lit workspace for precise work.





Display IPS10 inch HD touch screen Android base tab, screen tilting angle (-5° to 15°)with Geometrical Measurements function
Optical Zoom Continuous zoom objective 0.7X-5X
HD Camera 1/3″ COMS 4MPBuilt-in camera module, real-time HDR, built-in OSD menu,
Large Objective 1X large objective lens, WD105mm

1.4X large objective lens, WD100mm

0.5X large objective lens, WD170mm

Light source LED ring light: 56 LEDs with dimming knob, switch, color temperature 5000-5500K
Data Storage Built-in storage 16GB, support SD card storage,
Output interface HDMI, USB 2.0,Mini usb2.0, support wireless mouse and keyboard
